The microprocessor based CE mark 96 Zone conventional fire alarm control panel, the system has 20 X 4 LCDcharacter with alpha numeric touch key pad, 96 zones detection circuit, 3 common programmable potential free contacts &4 common NAC sounder output, inbuilt Rs-485 for Networking – TCP/IP, peer to peer & repeater connectivity, central monitoring facility, inbuilt RTC with Event logs, wall/ceiling mounted, Switch mode power supply- SMPS & Battery polarity & Deep discharge protection. RE-900 Series fire alarm control panel is designed with unique protocol to be used for small, medium & Large establishments, Schools, hospitals, hotels, banks, residential / commercial building, and small scale industries. The system is user friendly with includes all standard to ensure ease for use and high reliability.
96 Zone Fire Alarm Control panel, with Touch key pad, 20 X 4 Charater LCD Display, Inbuild RS-485 Communiction card can connect Max. 16 panels in a single network communication, Peer to Peer network through RS-485 communication Approval: CE Mark. Optionals:
1) Provision to connect zone wise sounder (RE-90ZS) in a seperate cabinet.
2) Provision to connect zone wise relay (RE- 90ZC) in a seperate Cabinet
3) MODBUS Converter (RE-90MB)
4) TCP/IP Module (RE-TCP)
5) SOFT CONNECT software for PC Monitoring

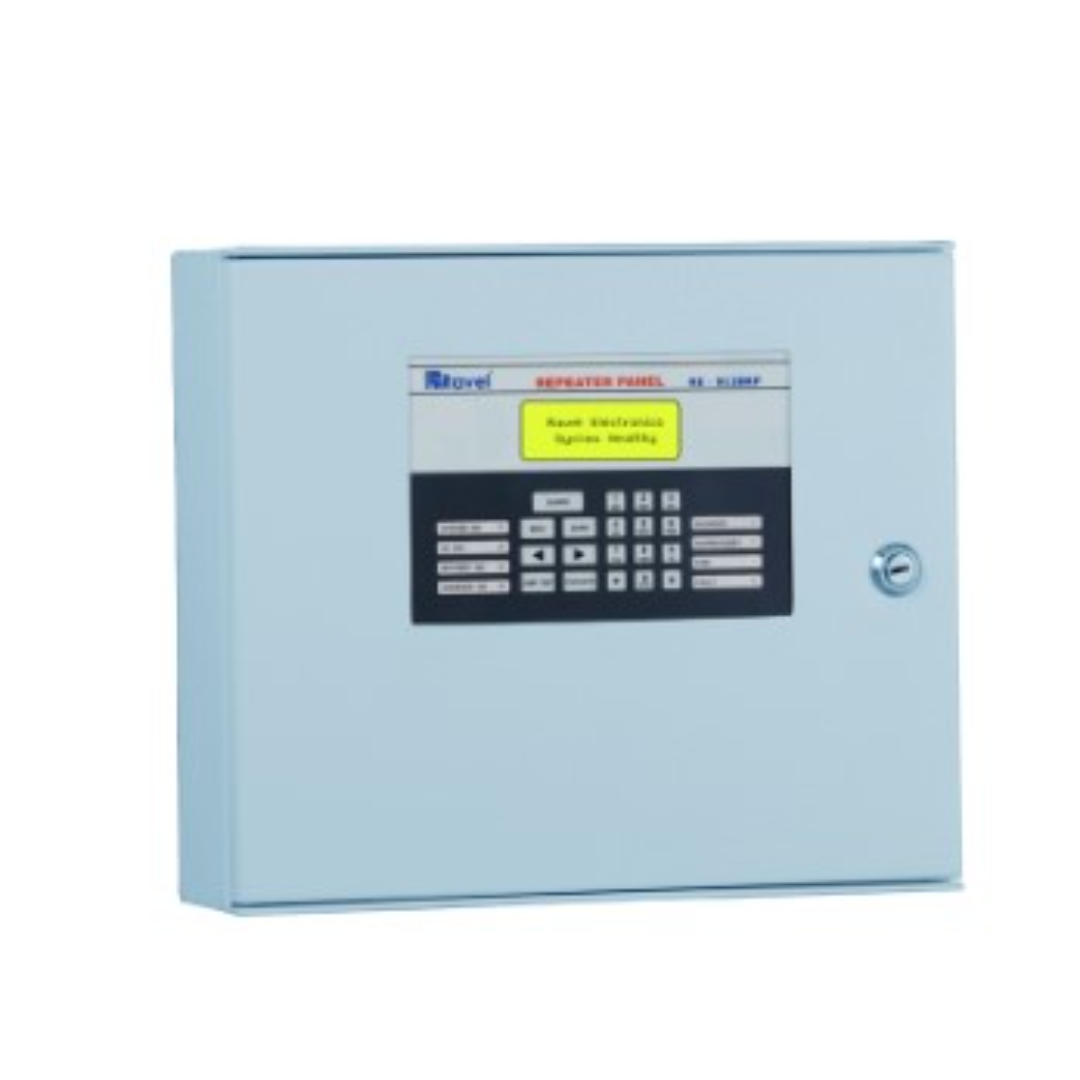

6) Repeater Panel compatible with RE-900 RP Series for monitoring main panels.
7) provision to connect & integrate Conventional Public Adress system through RS-485 Communication (REVAC).
Brand
Ravel
System Components
Fire Alarm Control Panel
Brand
Ravel
Type
Conventional
Usage/Application
Evacuation
Color
White
Model Name/Number
RE-9096
Country of Origin
Made in India
